565 sq. ft. - Cozy Outdoor Living Design with Pergola

Previous Product | Next Product
Product Description

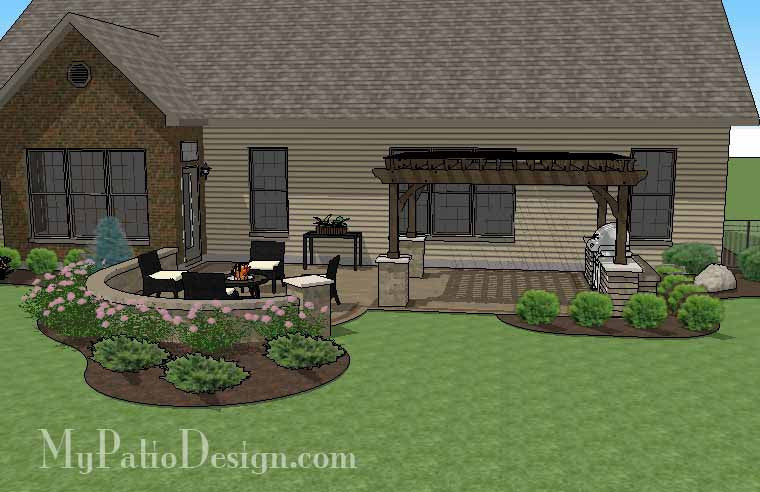

Created for homes with 6’ corner bump outs, our Cozy Outdoor Living Design with Pergola has everything you need to make your time out back relaxing and enjoyable.  Nest your roll around grill in the grill station and let the BBQ’ing begin.  Enjoy dining in the shade under the 12’ x 16’ cedar pergola.  And finish off the night relaxing in front of the warm fire pit.

With the downloadable plan for the Cozy Outdoor Livjing Design with Pergola, we’ll show you how to install this beautiful outdoor space in your backyard one step at a time.  To get this project rolling in the right direction, an itemized material list will quickly and accurately help you estimate and order product eliminating all the guess work.  Lots of 3D images combined with installation guides will show you step-by-step how to install the colorful 565 square foot paver patio and the 24” tall seating wall that gives extra seating to the fire pit or seating area.  And when it comes times to tackle the pergola and grill station, our fully dimensioned plan and how-to’s will show you exactly what to do.  What else is included in the downloadable plan?

As with all of our downloadable patio plans, you can choose the paver border, color and style of your choice to give the Cozy  Outdoor Living Design with Pergola your own personal touch.  The seating wall, columns and grill station are all constructed using a 4” x 8” x 12” tumbled patio block that’s available in an array of colors and can be purchase just about anywhere.  Learn more about where you can purchase material for this patio design.

  • Downloadable PDF File.  (print to standard 8 1/2" x 11" paper)
  • 6 Large 3D Images of Patio and Landscaping.
  • Fully Dimensioned Layout for Paver Patio, Cedar Pergola, Grill Station and Seating Wall.
  • Step-by-Step Instructions to Install Cedar Pergola and Grill Station.
  • Easy to Follow Paver Patio and Seating Wall Installation Guides.
  • Itemized Material List for Paver Patio, Cedar Pergola, Grill Station and Seating Wall.
  • Paver Pattern Options.
  • Patio Cross Section Views.
  • What all is included in the downloadable patio plan?
  • Where can I buy block and pavers?
  • 565 sq. ft. of Outdoor Living Space.
  • Patio Designed to Fit Corner Homes with 6' Bump Outs.
  • (2) Large Areas for Outdoor Dinging and Fire Pit.
  • ​Patio Surface Laid with Your Choice of Paver Style, Color and Pattern.
  • 12’ x 16’ Cedar Pergola with Columns Wrapped with in Stone (plan included). view cedar pergola design
  • 24” Tall Seating Wall with Columns on Each End Provides Overflow Seating to Fire Pit Area.
  • Grill Station for Roll Around Grills up to 60” Wide Built into Pergola (plan included). view grill station design
  • Seating Wall, Columns and Grill Station Designed Using 4" x 8" x 12" Tumbled Patio Block.
  • Colorful Border Pavers.
  • Landscaping Ideas!
$ 70

We make your patio project

 Simple.  Easy.  Affordable.



Large 3D views.





Realistic 3D Views.

Having the assurance of knowing precisely what your new outdoor living area will look like is important. That is why every patio design download from MyPatioDesign.com includes 4 to 8 large 3D views of the overall patio. No more guessing, because all of our patios and hardscape accessories are not only drawn to scale, but with the very same material you will install your beautiful patio with.






______________________________________________________________________________________________________________________________________________________________________________


Material Lists for patio and all hardscape accessories.





Material List.

When we created material lists for our designs, we thought of EVERYTHING.

A material list that provides quantities for every item and gives you the flexibility to make changes to any part of your project.

Want to change paver color?  style?  how about pattern?  No problem.

Since our 3D designs are not manufacture specific, you can choose any paver you like and it will fit right into our design.

Even a worksheet is designed into our material list so estimating is simple and easy.






______________________________________________________________________________________________________________________________________________________________________________



Patios and hardscape accessories are fully dimensioned.





Fully Dimensioned.

Having a few pretty pictures for ideas is a nice start, but having a full set of prints that are completely dimensioned is what you need.

All of our patios and hardscape accessories are fully dimensioned so you can install them to look exactly like the picture.

From layout to your completed installation, our fully dimensioned patios and hardscape accessories will get you there more quickly and more smoothly.







______________________________________________________________________________________________________________________________________________________________________________


All designs include how-to's.





How To's.

Installing a patio, an outdoor fireplace or even a kitchen can be a little intimidating and we completely understand. That's why we include step-by-step instructions on how to install the patio and ALL of the hardscape accessories.

We've applied our expertise to pictures, dimensions, and instructions to our designs so by the time you are ready to install, you'll know exactly what you are doing.






______________________________________________________________________________________________________________________________________________________________________________


Paver patterns, installation tips, cross sections and more.





And Much More...

To make our design packages complete and help you fully understand your patio project...

We also include cross section views so you have a better insight to elevations.

Paver pattern options to get the style you like.

And helpful installation tips and tricks to assist you along the way.

We even include a detailed guide on how to hire a paver contractor.






______________________________________________________________________________________________________________________________________________________________________________

 You Can Buy Material Anywhere!




Pavers

Pavers.

Our 3D paver patios are creatively designed to use any paver of your choice. Whether you live in New York, Florida, Texas, California or somewhere in between, your local hardscape supplier will have pavers to fit our design.

Your pattern...Our pattern...it doesn't matter. For your convenience we provide some popular paver patterns in every patio design, but don't be afraid to get creative and use your own.






______________________________________________________________________________________________________________________________________________________________________________


Tumbled Patio Block

Tumbled Patio Block.

When we sat down to design hardscape accessories, we chose a block that was beautiful, stylish, simple to install and most importantly, readily available.

All of our 3D hardscape accessories are designed with a 4" x 8" x 12" tumbled patio block that comes in assorted colors and is available at most suppliers of hardscape material.



______________________________________________________________________________________________________________________________________________________________________________

To make your patio or hardscape accessory construction process go as simple and efficient as possible we include the following in ALL of our downloadable plans.
  • Realistic 3D Aerial Views.
  • Full Dimensioned Layout of Patio and Hardscape Accessories.
  • Easy to Follow Paver Patio Installation Guide.
  • Cross Section Views.
  • Step-by-Step Installation How-to's for ALL Hardscape Accessories.
  • Itemized Material Lists for Patio and Hardscape Accessories.
  • Paver Pattern Options.
  • Installation Tips and Tricks.

Visit our What's Included page for more details of what your will receive in downloadable design packages.

After you complete the checkout process your design purchase(s) will immediately be emailed to you in a PDF file.  We recommend you immediately save this file(s) to your computer.
No worries, once you purchase a design you can re-download that design anytime.
All of our designs can be printed to a standard 8 1/2" x 11" sheet of paper.
Yes!
If you have questions regarding how to download your design, please call us at 513-519-2416 or email us at designer@mypatiodesign.com and include your name and telephone number.  If you've already purchased or are going to purchase a design and would like expert advice regarding installation, please give us a call, we'll be glad to help.
Yes.  Our material list will let you choose any color or pattern you like.
The file you are downloading is not our actual design file, so you will not be able to make changes to it.  However, if you like a design and would like it modified, we can make those changes for you.  Note: The fee for design modification depends on the modification.
Due to the nature of this product, we are not able to provide refunds.  We offer a large preview of the design as well as a What's Included page that shows everything that is included to assist you in making an informed purchase.
Either.  If you'd like to install it yourself, please review our What's Included page and make sure you are comfortable with this type of project.  If you plan to hire a contractor to install your patio, the information included in the downloadable plan is perfect for soliciting apple-to-apple bids from local contractors.
